Label Generation

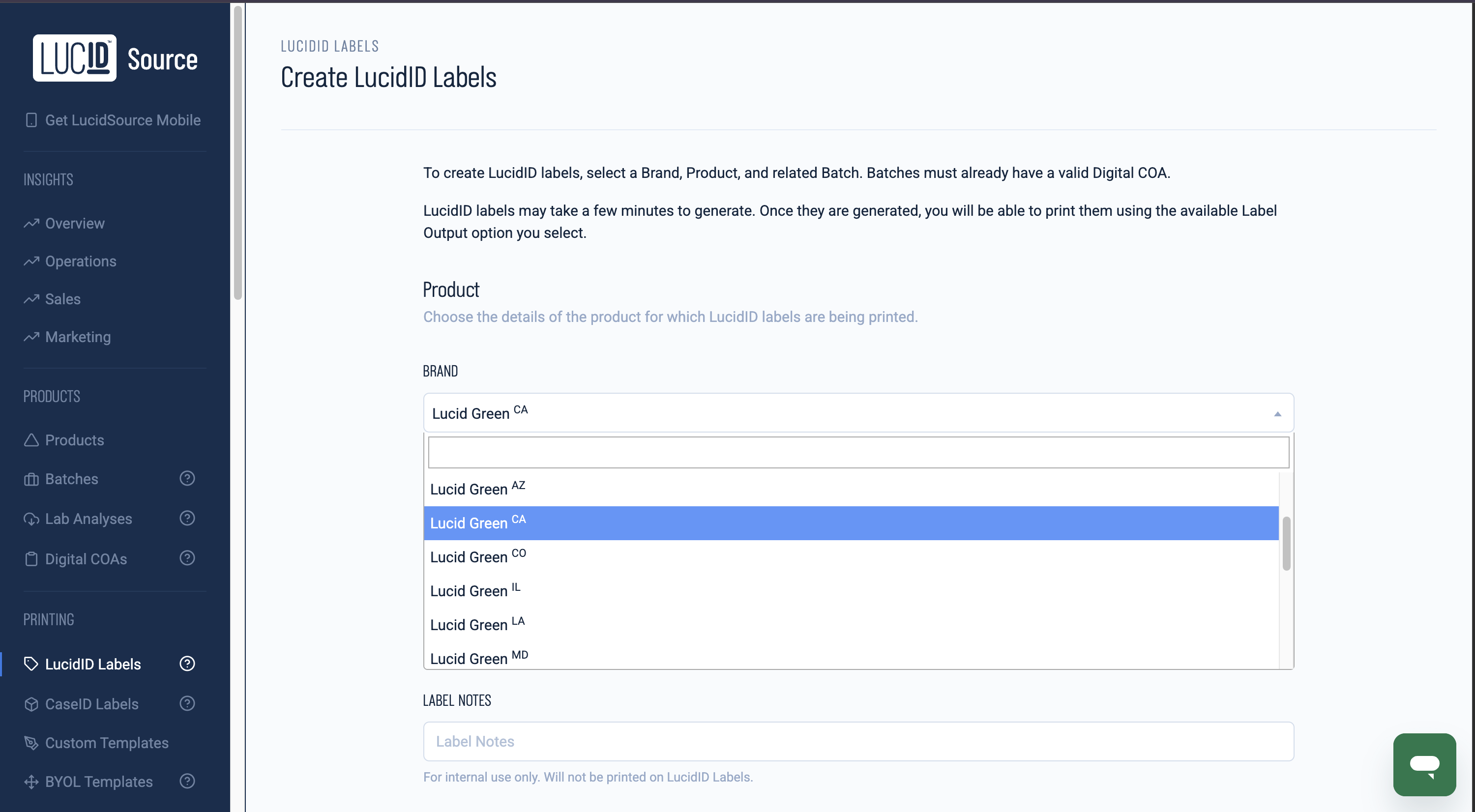

Select LucidID Labels on the left hand side of LucidSource under Printing.

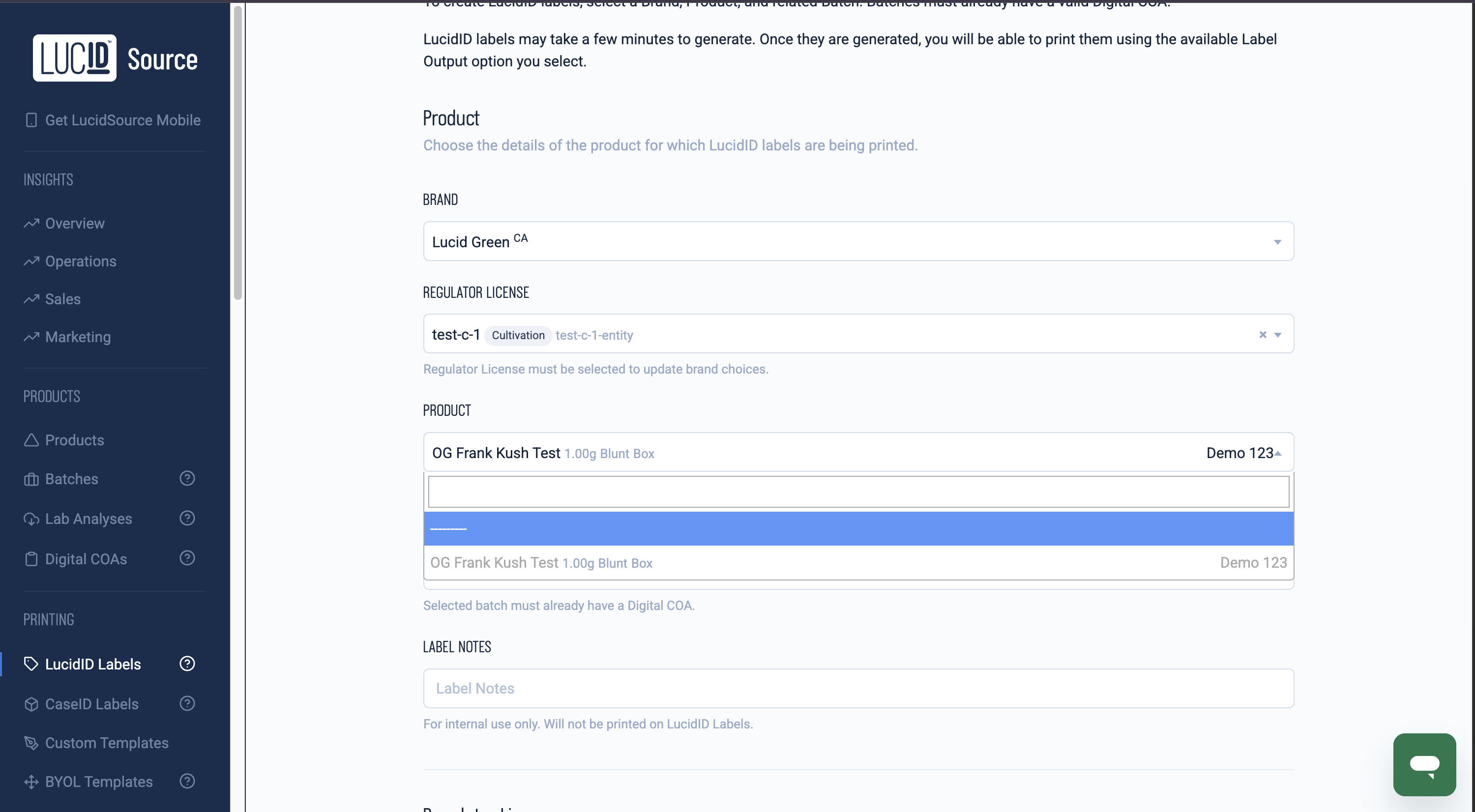

Product: Select the product to be printed from the drop down menu.

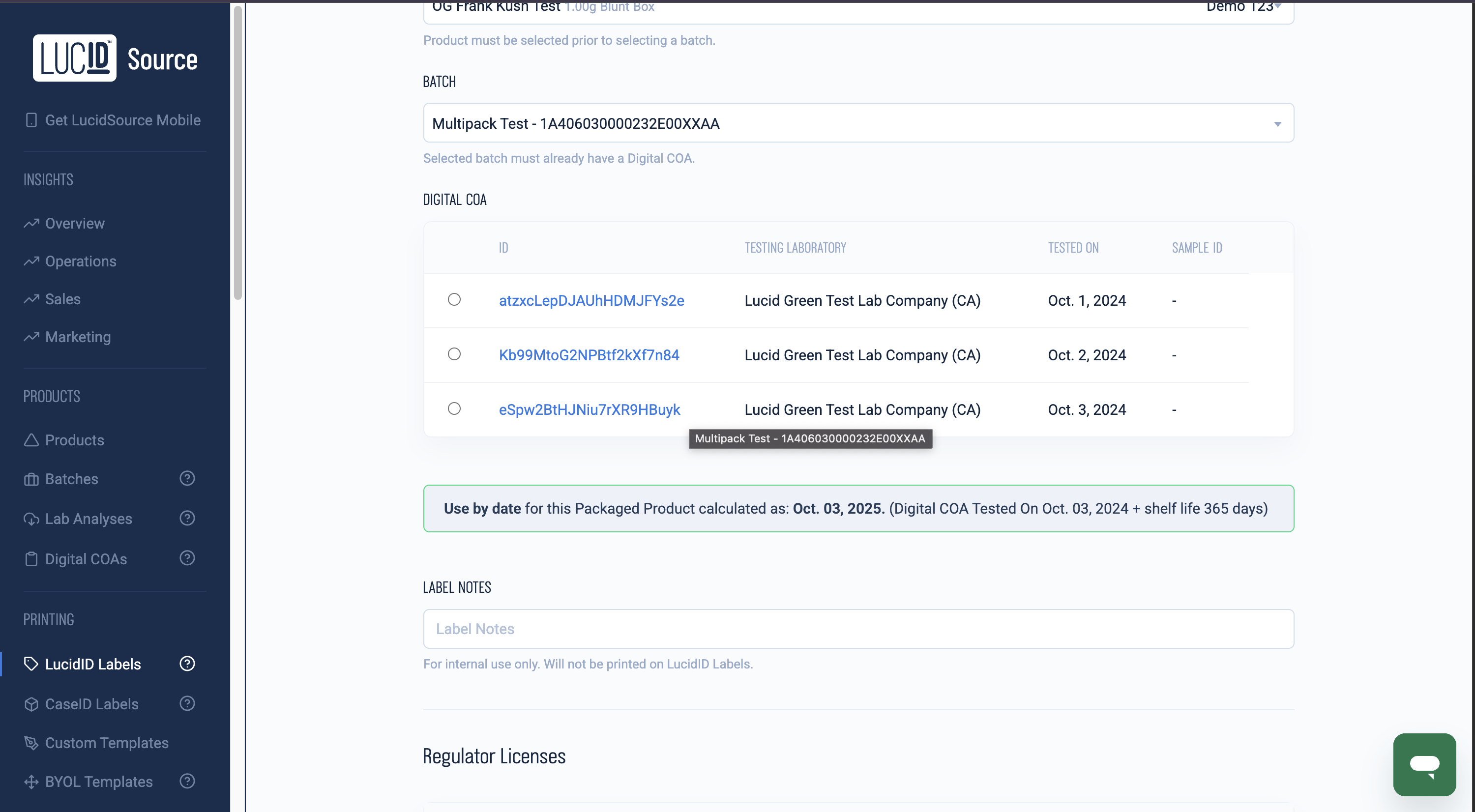

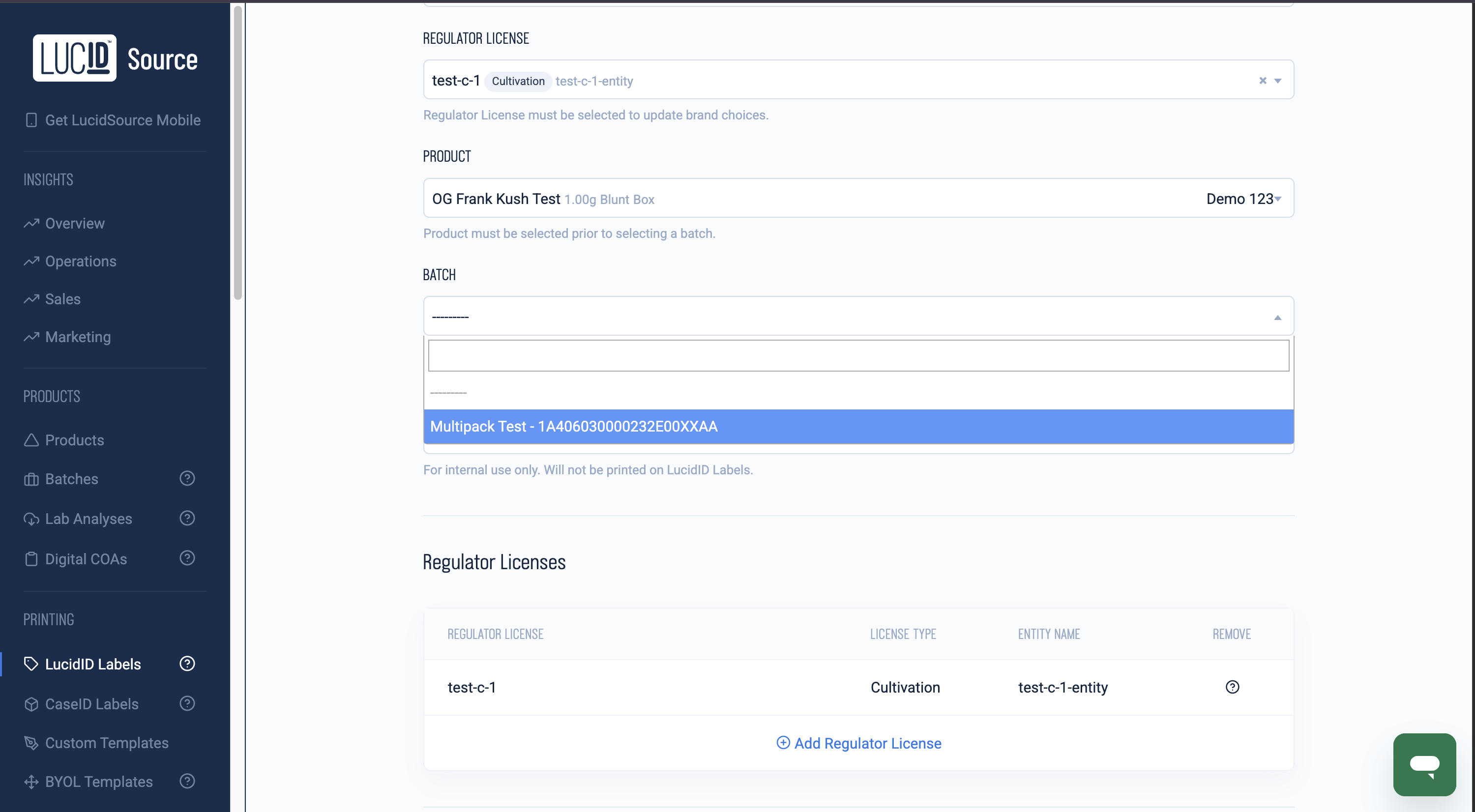

Batch: Select the Batch ID to be printed from the drop down menu.
Digital COA: Select the Digital COA to be associated with the labels.
- (If multiple Digital COAs are present, select the correct Digital COA)
Single Transfer Regulator UID or Multiple LucidIDs per Transfer Regulator UID:
- Single Transfer Regulator UIDs are used when printing batches of labels without a Transfer Regulator UID or only a singular Transfer Regulator UID
- Multiple LucidIDs per Transfer Regulator UID are used when Transfer UIDs are known and need to be printed on the labels as variable data, typically used in Michigan, Arkansas or Biotrack states.
Total Number of LucidID Labels: Fill in desired amount of labels you wish to print.
- (As each label is completely unique due to the LucidID, we need to specify the total number of labels for the batch that we are printing)
Transfer Regulator UID.
- (This is not a required field, our onboarding team will identify if this field is required and explain the use)
Label Output
- During the onboarding process our team will identify which output process will be used and train the printing team on the use of it. Custom label templates are used in most cases, alternative printing methods require additional set up and changes and would be discussed during onboarding.
- Select the BarTender printing option on the right.
- Select the BarTender template that will be used for printing
- Select the Printer that will be used from the BarTender Integration drop down list:
- This is the name of the printer being used on the local printing system and requires an exact name match
- (If your printer does not show in this list, please submit a support request to have your printer added to the system.)

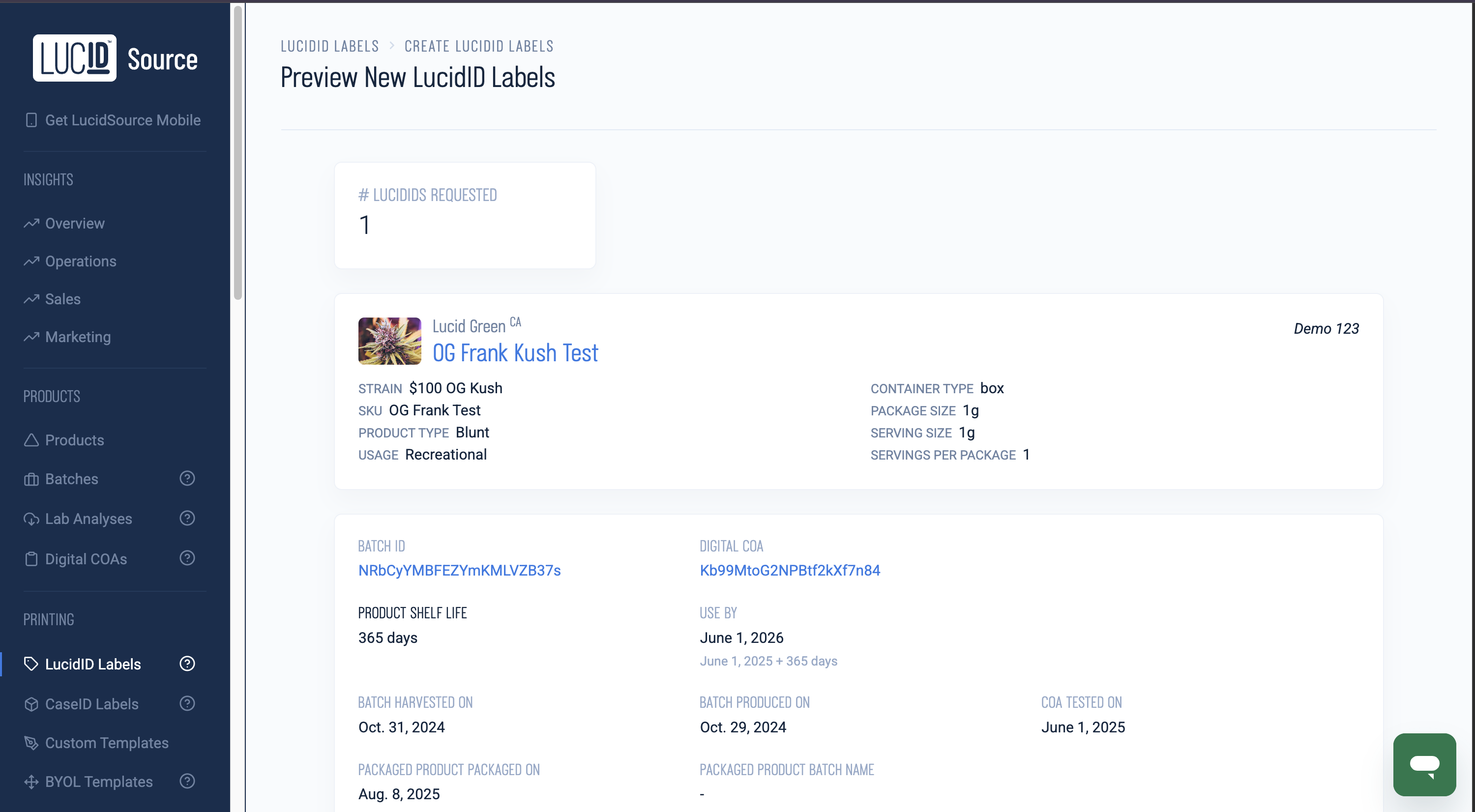

Label Preview
On the next page you will be provided with a preview of the Label if using Custom Templates or a preview of the data being passed if using BarTender or NiceLabel templates, as well as the batch information, the associated COA and how the labels are being printed:
This is a preview of a Custom Template, this preview uses live batch and COA data, so the printing team can confirm that the data and layout are accurate before printing labels:
After verifying the information in the preview window, you will have two options at the bottom of the page, you can either generate preview labels, or you can Confirm Preview and Create LucidID Labels.
Downloading 10 Preview LucidID Labels allows you to download a PDF to test print for alignment and spacing, These are NOT valid LucidIDs, and will replace the standard look of a LucidID to avoid confusion with preview labels.
This is what a placeholder LucidID looks like:
When satisfied with the LucidID Labels, or to bypass the preview step, click the “Confirm Preview and Create LucidID Labels” button.
- LucidIDs will not be created until the “Confirm Preview and Create LucidID Labels” button is clicked.
- Final LucidID Labels are then created and can be downloaded and printed for application on products.
Additional Printing Options
NiceLabel
NiceLabel templates are an option for specific integrations with our partner IPSi
This solution would be discussed during your onboarding process and is only used in certain printing scenarios, if you have questions on this please contact your account manager or reach out to our team with a support request
Bring Your Own Label
Bring Your Own Label is a legacy solution used to provide exact LucidID placement on pre-generated PDFs of regulatory labels, using our custom templates is the replacement for this option.
