- Download the generated PDF from Lucid Source containing the production regulatory labels
- Open the PDF in Adobe Reader or Adobe Acrobat
- Dismiss the error message if it pops up
- Open the Print Menu
- Select the correct printer from the drop down list
- Select the properties button to set the page size and orientation, the page size should match the exact label dimensions, the orientation affects the direction the labels feed at print time based on the label size.
- If a preview is provided, it should display as we expect the labels to feed.

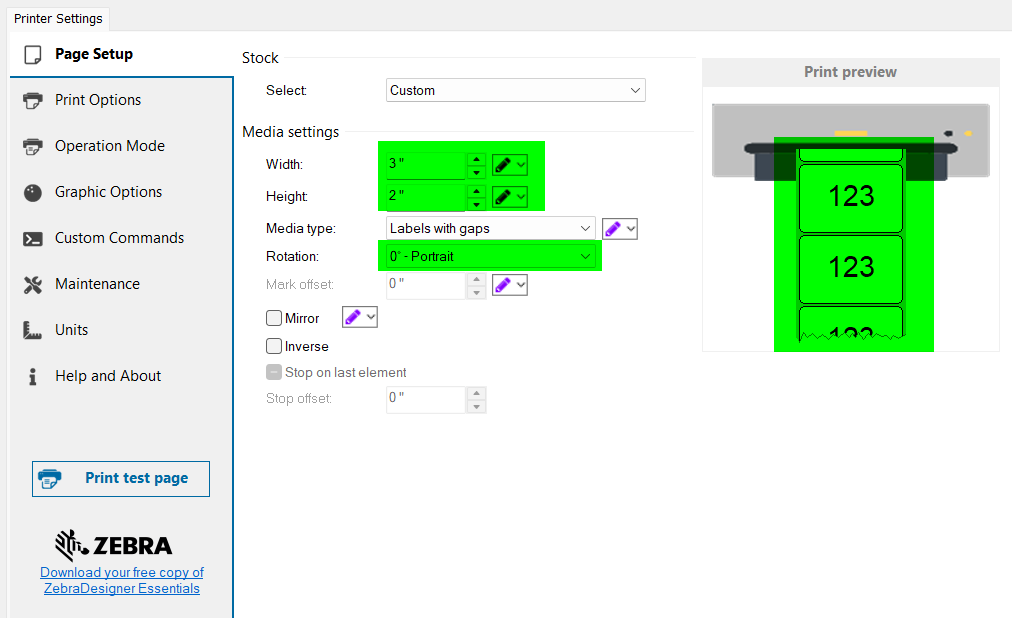

- Example from a Zebra Printer Driver: - This will change depending on the printer driver in use.
- After setting the Width, Height and Orientation if needed, click OK to confirm and go back to the print menu:

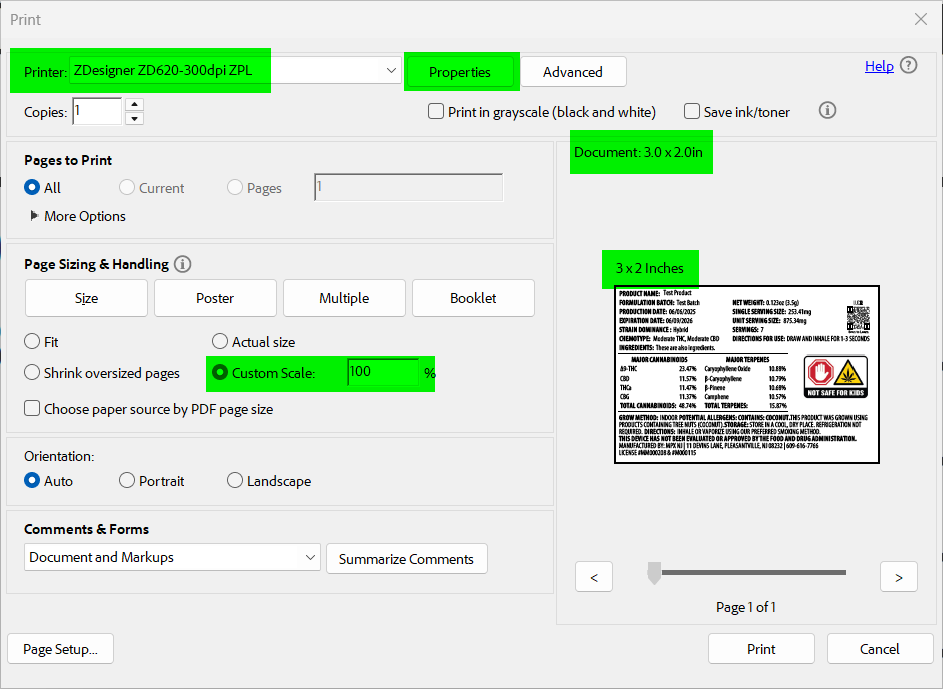

- In the print menu be sure we are using Custom Scale 100%, this provides the best scaling
- Validate that the Document size is correct and the preview on the right hand side looks correct with no additional label size or cutoff
- Click the print button and the labels will be sent to the printer
