Using Zebra 123Scan to Configure a Scanner for use with LucidIDs

In addition to using QR codes for specific scanners available in our help library, you can also use Zebra's 123Scan to configure a Zebra/Motorola/Symbol scanner.

1. With your scanner connected via USB to your Windows computer, open Zebra 123Scan, and click on the "Data View" tab.

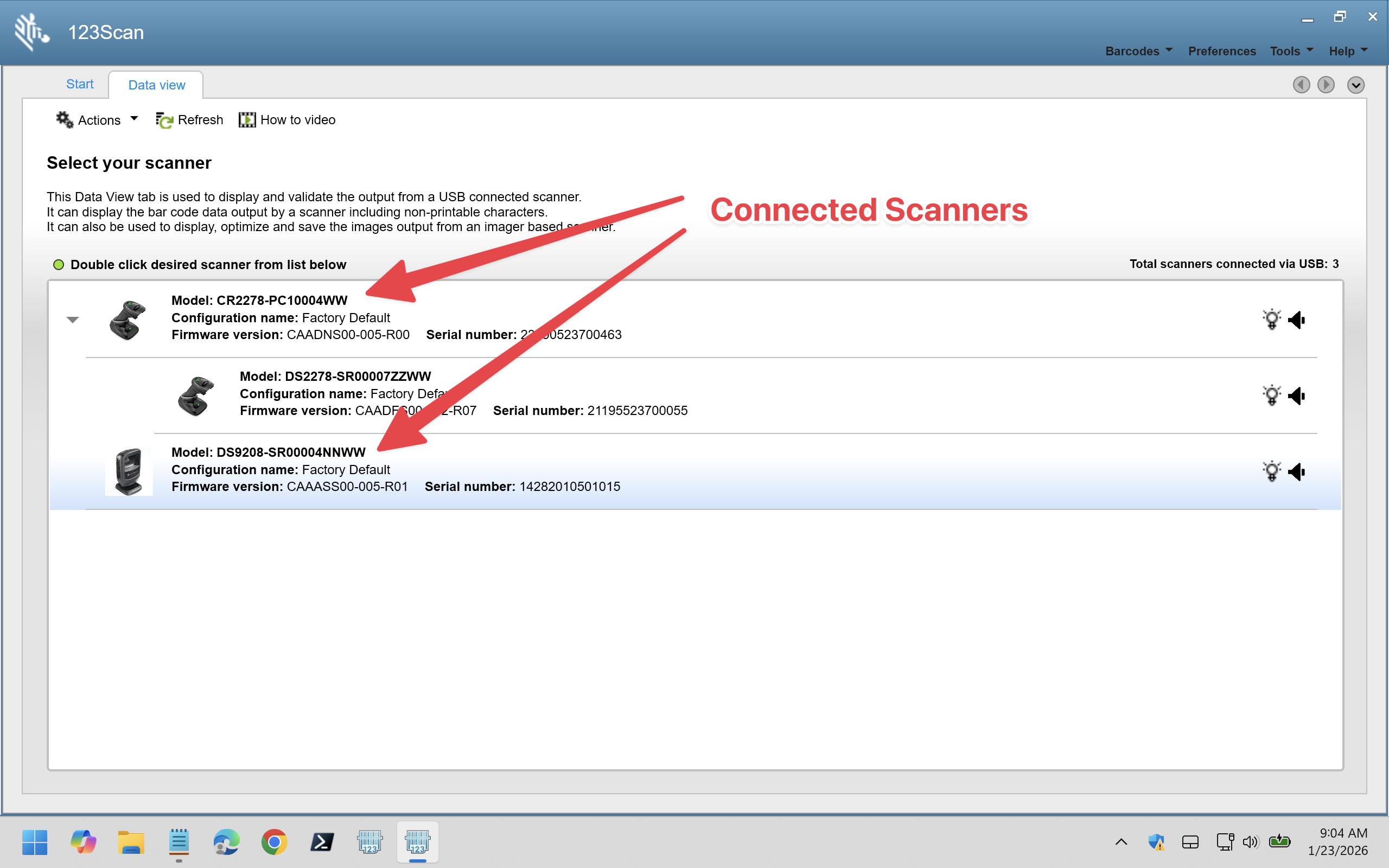

2. Confirm that your scanner is showing up as connected. If your scanner is not showing up, follow support instructions from Zebra to connect your scanner.


3. Double-click on the scanner to display its configuration screen.

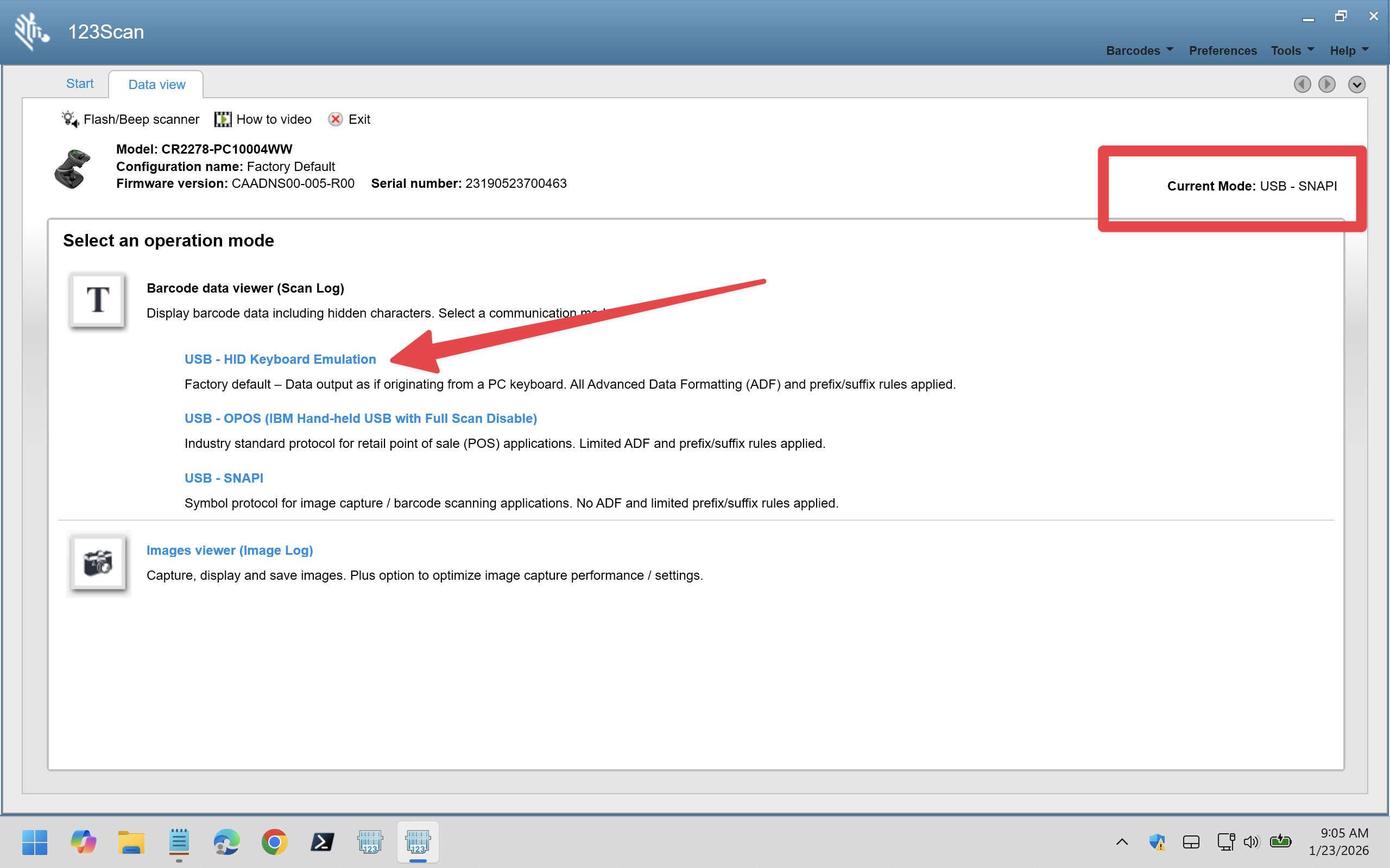

4. On the configuration screen for your scanner, check the "Current Mode" in the top right of the screen. It should show "USB - HID Keyboard Emulation". If it does not, your scanner isn't configured correctly.

   Click on USB - HID Keyboard Emulation on the list under "Barcode data viewer" on the left of the screen.

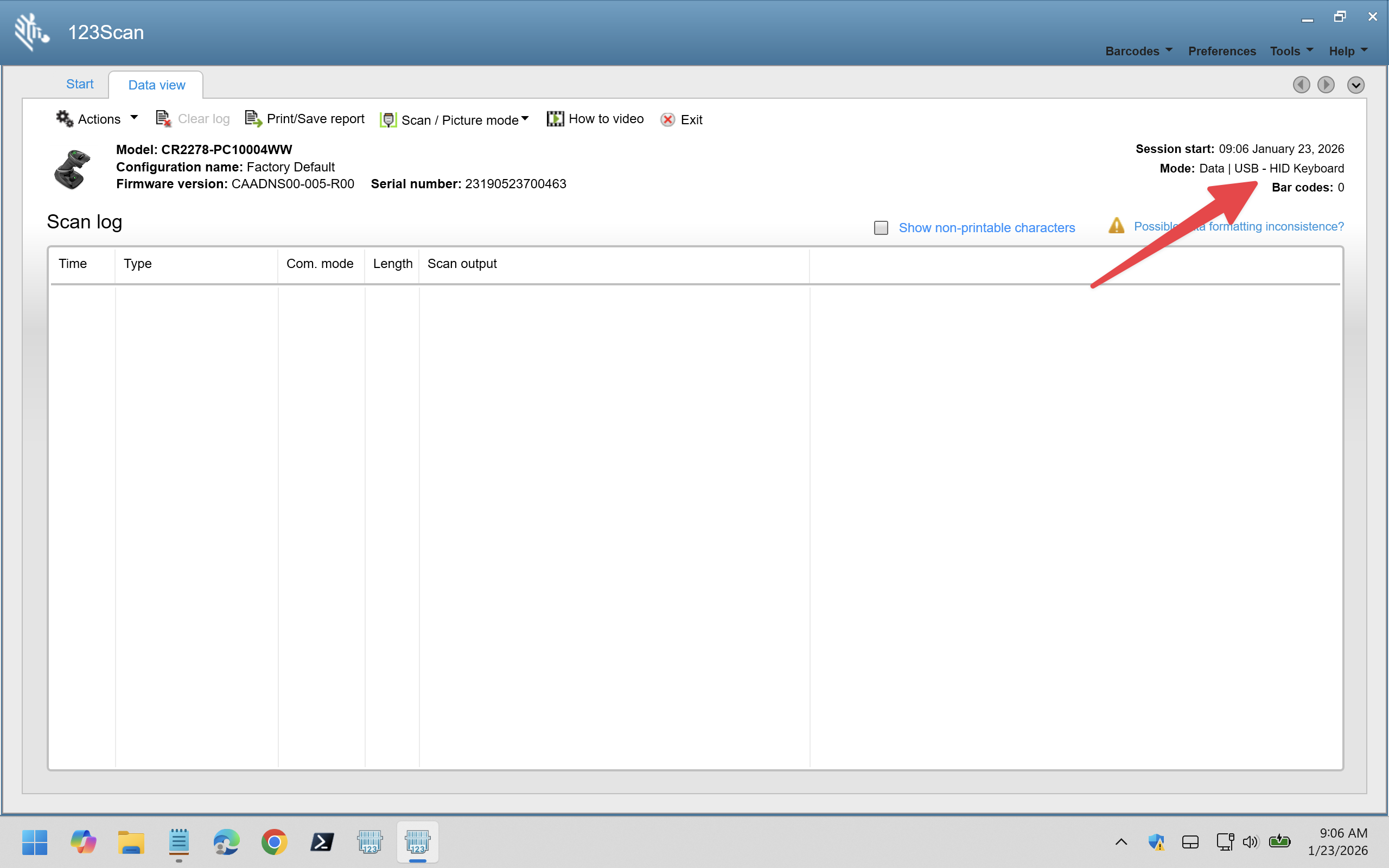

5. Your scanner should now be configured correct. Confirm that the "Mode" is set to "USB - HID Keyboard" in the Data View of the 123Scan App.

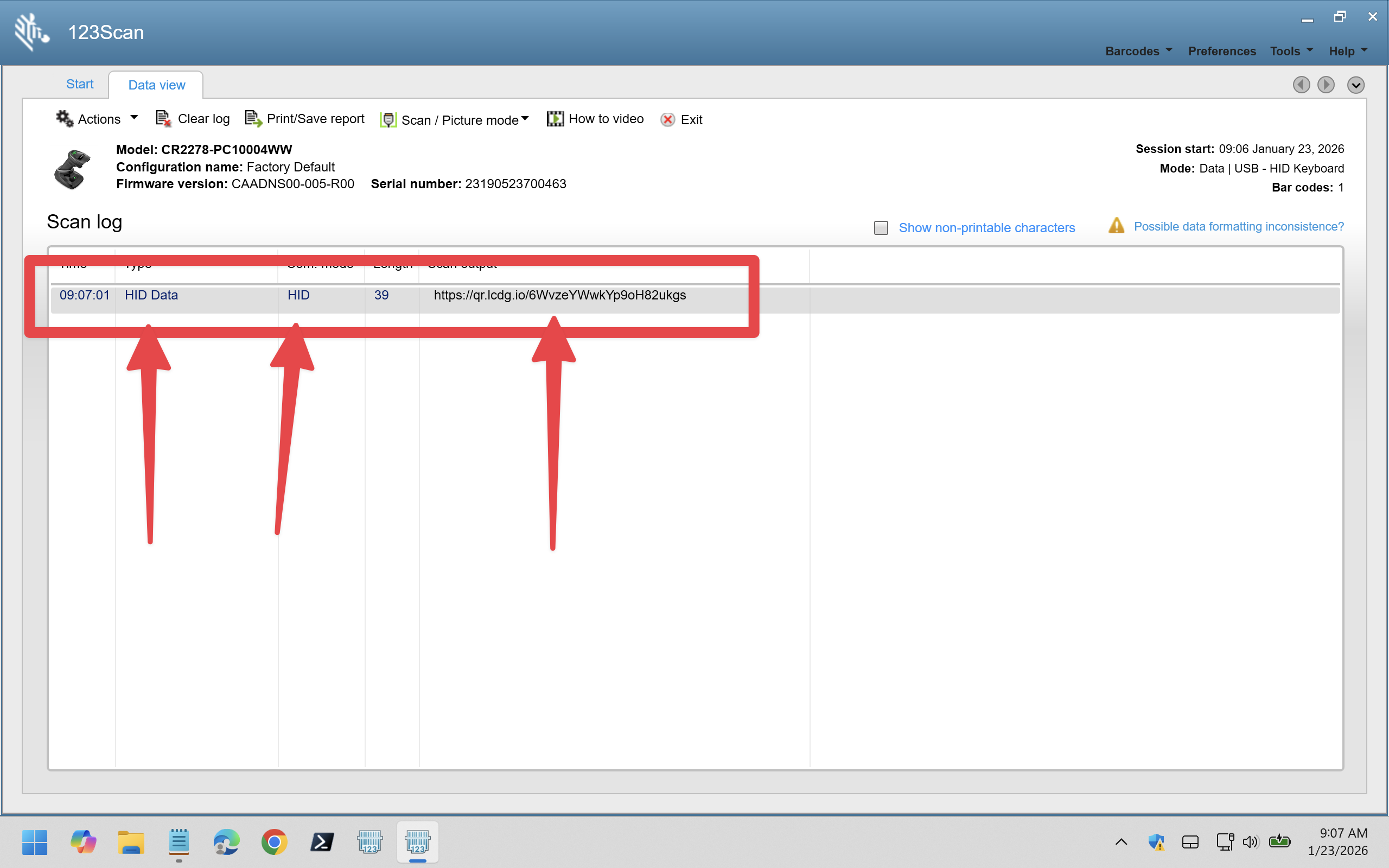

6. If you scan a LucidID in the Data View of the 123Scan App, you should see the LucidID code appear, with HID Data set as the "Type".
